New to Squishy Circuits? Start with the quick start below and light your first LED in about five minutes. Then explore the explainers, lesson plans and 55 free projects whenever you are ready.
Start here
Quick start: build your first circuit
No experience needed. You only need three things, and the whole circuit takes about five minutes.
You need
- Battery holder with 4 AA batteries
- Conductive (colored) dough
- 1 LED
Steps
- Put 4 AA batteries in the battery holder and leave the switch off.
- Roll two balls of colored dough, each about the size of a golf ball. Set them on the table about a finger-width apart, not touching.
- Push the red wire from the battery holder into one piece of dough and the black wire into the other.
- Find the longer leg of the LED. Push it into the dough with the red wire, and push the shorter leg into the other piece.
- Turn the battery holder on. Your LED lights up!
Not lighting up? Turn the LED around, since it only works one way. Make sure the two pieces of dough are not touching, the battery holder is on, and the batteries are fresh.
You just built a circuit! Find out why it works in What Is a Circuit?, or jump straight to the 55 free projects.
Electricity basics
Got your LED to light? These short, illustrated explainers show what is happening inside the dough. Each one has a hands-on activity, key words and answers to common questions.
What Is Electricity?
Electrons, charge and energy, static vs. current electricity, and where power comes from.
What Is a Circuit?
The parts of a circuit, open vs. closed loops, and how to build your first dough circuit.
Conductors and Insulators
Why salty dough conducts and sugar dough does not, plus a conductor tester you can build.
Is It a Conductor or an Insulator?
32 everyday objects sorted, from coins and foil to water, pencils and pickles.
What Is Polarity?
Positive and negative sides, which parts care about direction, and why LEDs only work one way.
What Is a Short Circuit?
What happens when electricity takes a shortcut, and how to spot and fix one in dough.
What Is Resistance?
What makes electricity harder to push through, shown with long and short dough snakes.
Go further with circuits
Ready for more? Build bigger circuits, learn how engineers draw them, and try the math behind them.
Series and Parallel Circuits
One path or many? Why series LEDs get dimmer and why your house is wired in parallel.
Circuit Symbols and Schematics
Turn a dough circuit into a schematic, learn the symbols, and try the one-switch challenge.
Ohm's Law Explained
Voltage, current and resistance, the triangle trick, and an LED that dims as the dough stretches.
How to use the parts
How each part works, which way it goes in the dough, and what to do when it will not turn on.
How to Use an LED
Long leg, short leg, colors and the most common LED mistakes.
How to Use a Buzzer
Piezo vs. mechanical buzzers and how to make them beep.
How to Use the Motor
Make it spin, reverse it, and build fans and propellers.
How to Use the Switch
Turn a circuit on and off without pulling wires out of the dough.
Lesson plans for teachers
Free, printable lesson plans and guides for classrooms, libraries, camps and homeschool.
NGSS Curricula and Educator's Guide
Multi-lesson unit with worksheets: circuits, series and parallel, and squishy schematics.
Squishy Circuits in the Classroom
How to run Squishy Circuits with a class, supplies for each group, and NGSS standards alignment.
Quick Start Guide and Circuit Basics
Slideshows that walk students through their first circuits, plus the printable quick start guide.

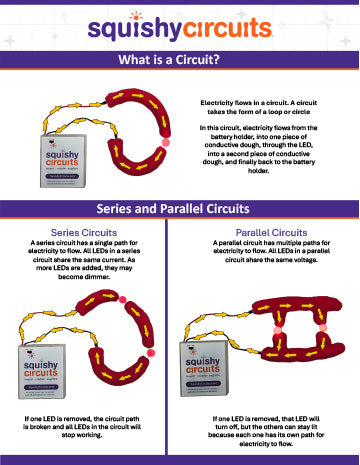

Circuits Explained
A two-page illustrated overview of circuits, conductors and insulators to print or project.
Components Explained
A printable guide to the LEDs, buzzers, motors and switches in the kits.
Series and Parallel Circuits Worksheet
A one-page handout comparing series and parallel circuits built with dough.
Advanced topics and labs
For older students and science fairs: how the parts really work, plus labs with real measurements, chemistry and code.
Resistivity Lab
Measure current and voltage with multimeters, calculate resistance, and find the resistivity of dough.
How Do Batteries Work?
What is inside a battery, and the Squishy Battery lab: build a working battery from dough, nails and copper wire.
How Do LEDs Work?
Inside the chip: why LEDs only work one way and what makes each color.
What Is PWM? The Pulse Slider
How the pulse slider blinks LEDs, beeps buzzers and slows motors, and how dimmers use the same trick.
How Do Solar Panels Work?
Turn sunlight into electricity, power a dough circuit with the sun, and use a motor as a generator.
Coding with Squishy Circuits
Use dough as a sensor with an Arduino: Squishy Sound and a color-mixing RGB LED controller.
Projects and printables
Step-by-step builds with photos and video, and printable cards for every project.
55 Free Projects
Light-up animals, buzzing robots, spinning fans and more, each with steps, photos and a video.
Printable Project Cards
Every project card in one file, front and back on one page, ready to print for stations or samples.
Dough Recipes
Make conductive (salt) dough and insulating (sugar) dough at home or for the whole class.
Other languages
Español
Quick start guide, lesson plan and video in Spanish.
Français
Quick start guide in French.
Deutsch
Quick start guide in German.
العربية
Lesson plan and video in Arabic.
ASL videos
Squishy Circuits videos in American Sign Language.
Research
Squishy Circuits started as a research project at the University of St. Thomas.
Published Works
Papers and articles about learning with Squishy Circuits.
Articles
Deep dives on the electrical grid, buzzers, salt in dough and hands-on learning.
Teaching a class? Request a free sample kit or get a quote for classroom kits. Questions about a lesson? Contact us.
